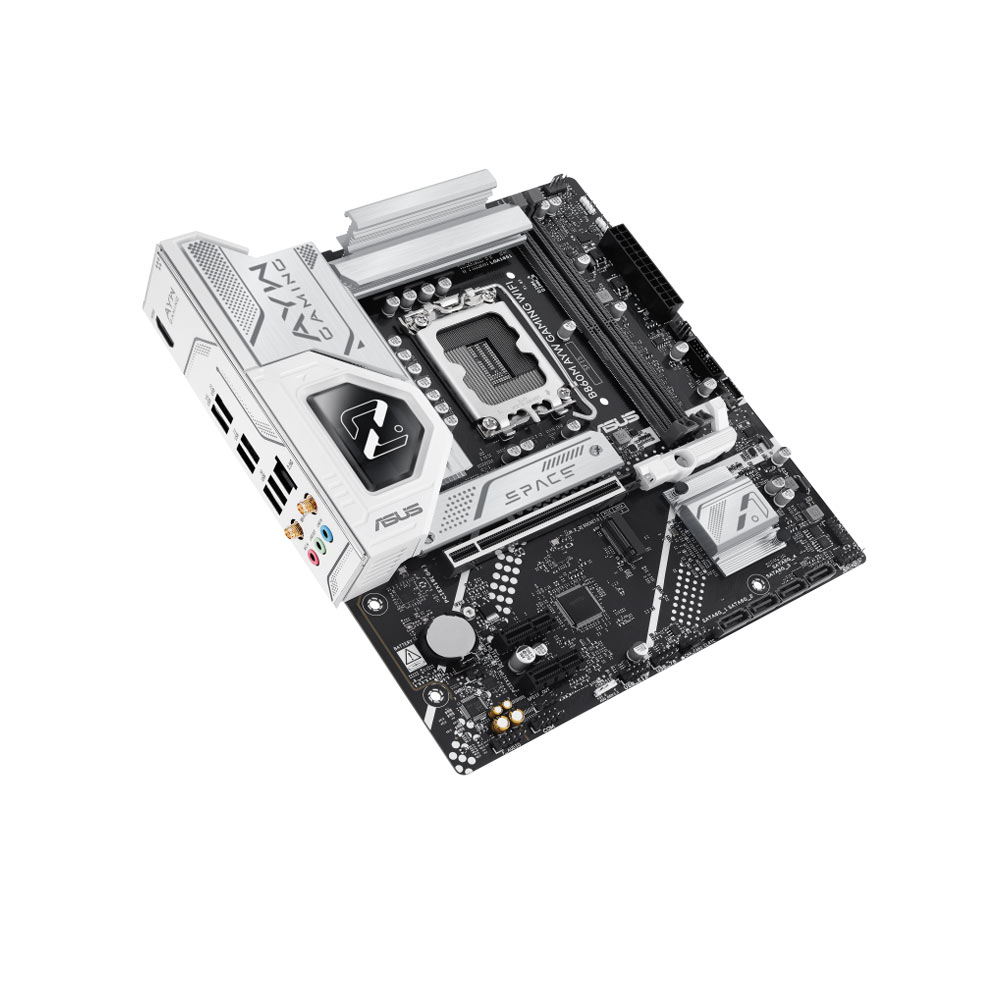

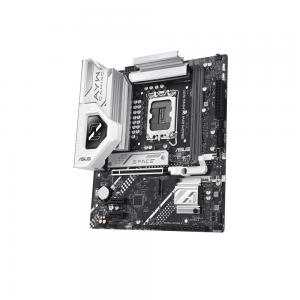

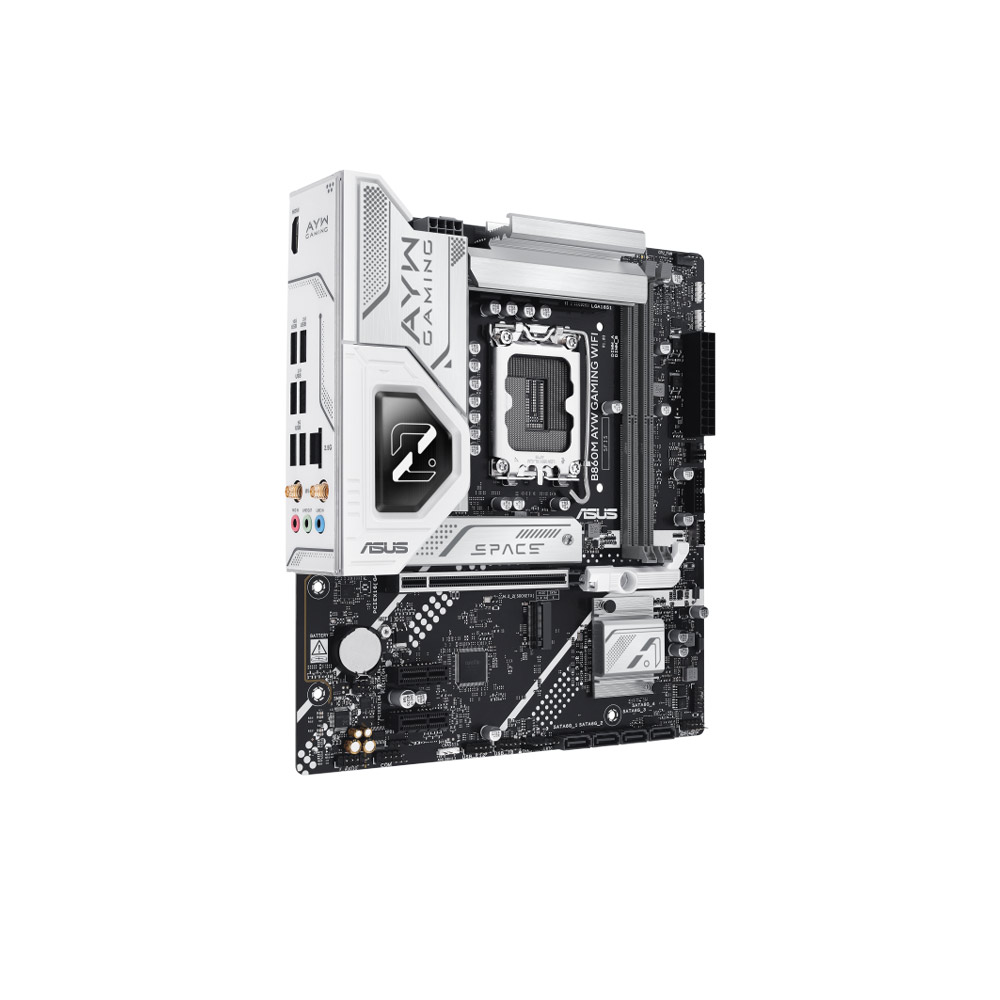

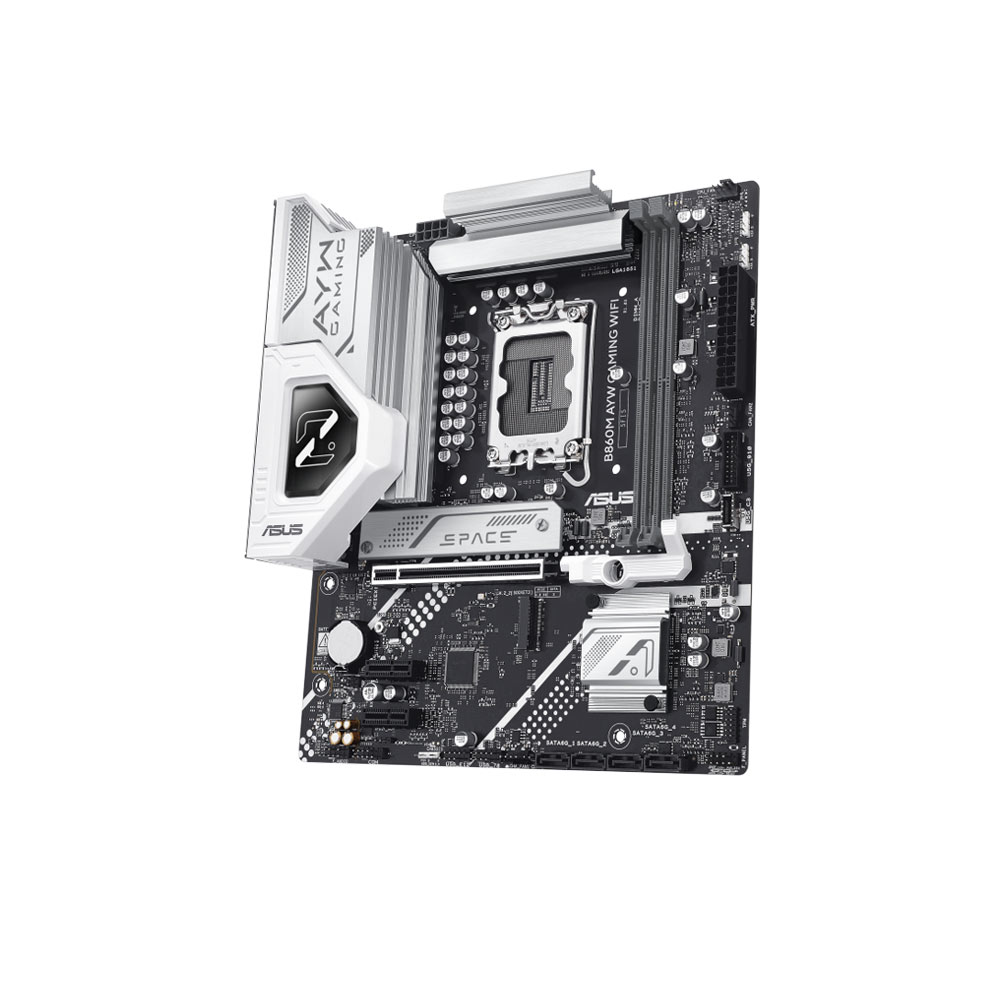

Mainboard ASUS B860M AYW GAMING WIFI

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

CPU hỗ trợ

Supports Intel Core Ultra Processors (Series 2), LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset

Intel B860 Chipset

RAM hỗ trợ

2 x DIMM slots, max. 128GB, DDR5

Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
Dual channel memory architecture

DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMPIII)

Đồ họa

1 x HDMITM port

Khe cắm mở rộng

Intel Core Ultra Processors(Series 2)
1 x PCIe 4.0 x16 slot

Intel B860 Chipset
2 x PCIe 4.0 x1 slots

Ổ cứng hỗ trợ

Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® Core Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

Intel B860 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

ETHERNET

1 x Realtek 2.5Gb Ethernet
ASUS LANGuard

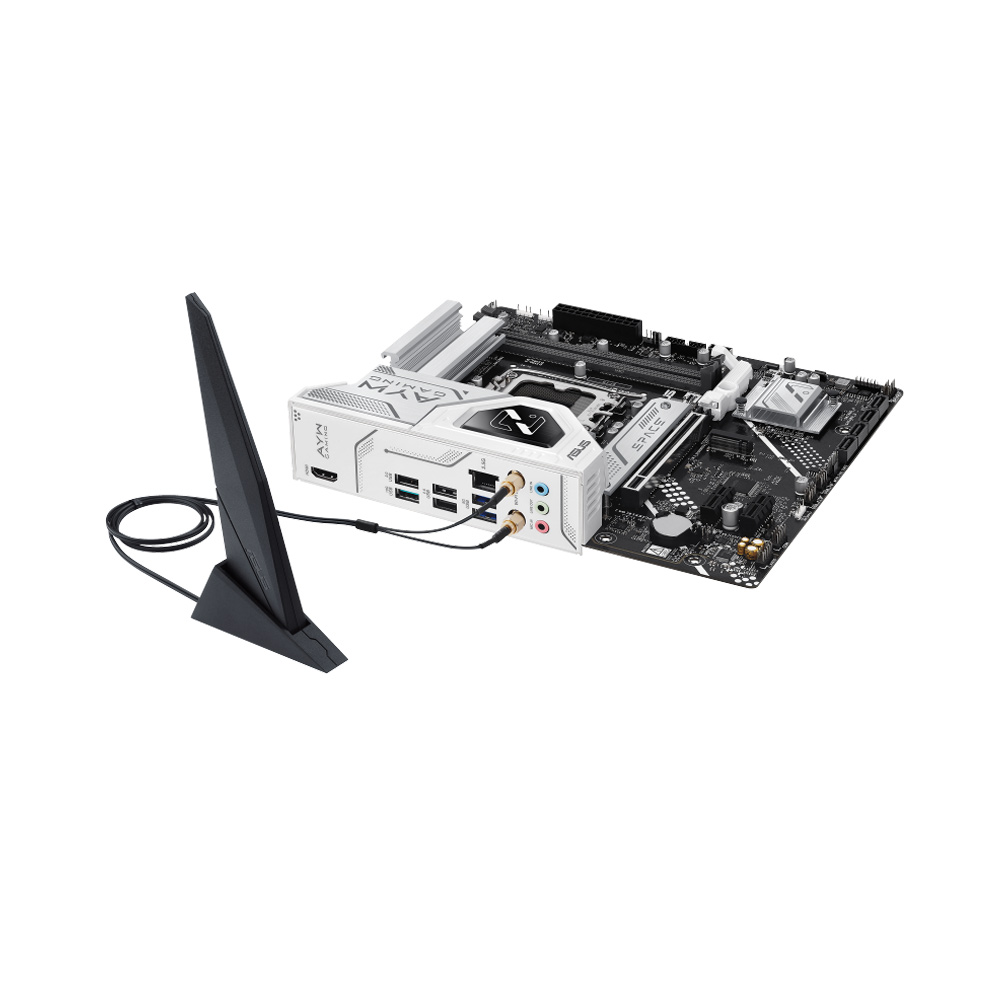

LAN / Wireless

Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.3

USB

Rear USB (Total 6 ports)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
3 x USB 2.0 ports (3 x Type-A)

Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C®)*
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Cổng kết nối (Internal)

Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers

Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power

Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front Panel System header

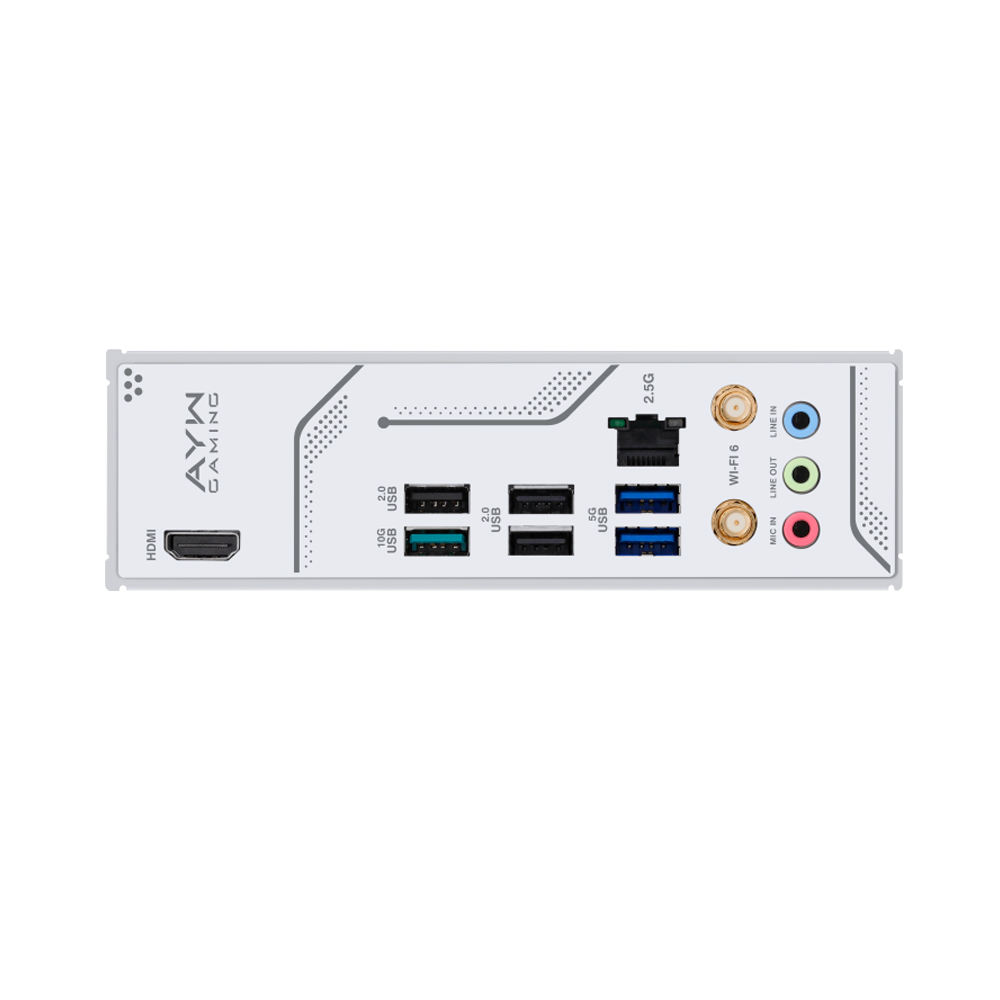

Cổng kết nối (Back Panel)

1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
3 x USB 2.0 ports (3 x Type-A)
1 x HDMITM port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks

Âm thanh

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

Kích cỡ

micro-ATX Form Factor
9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm )
