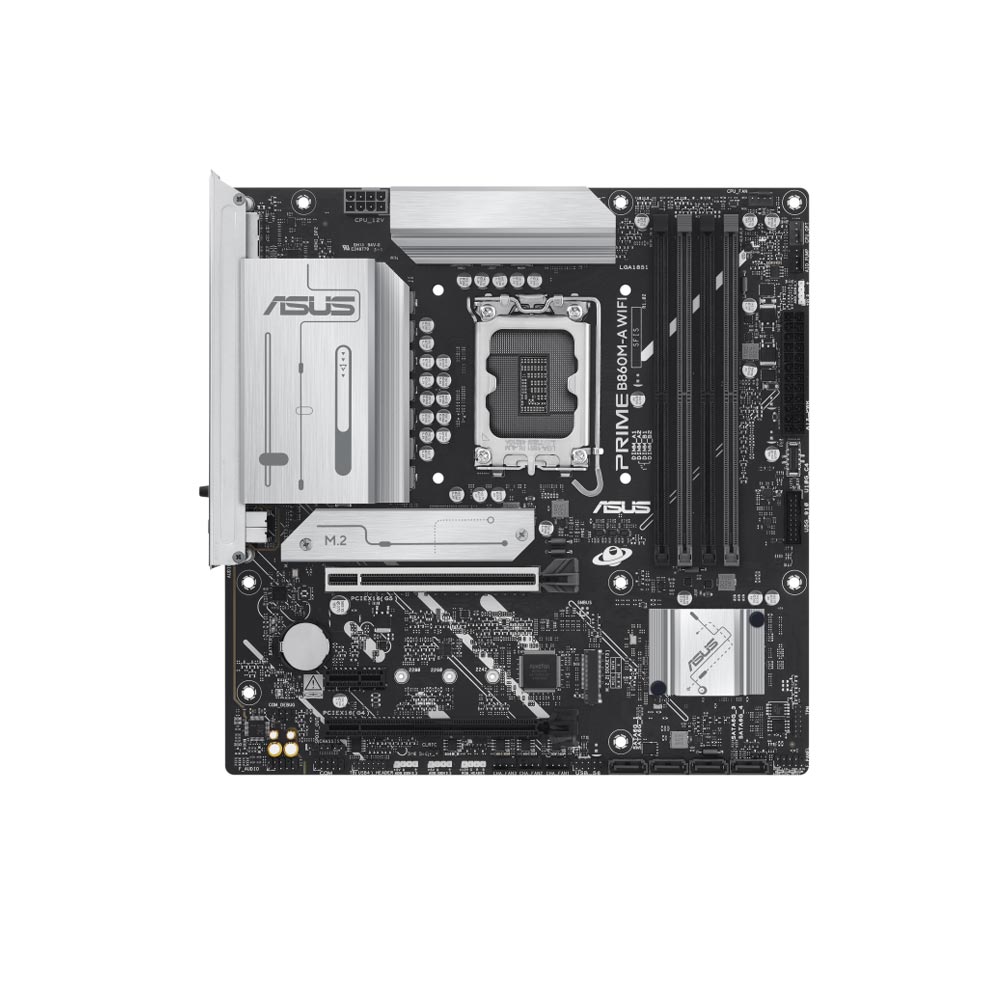

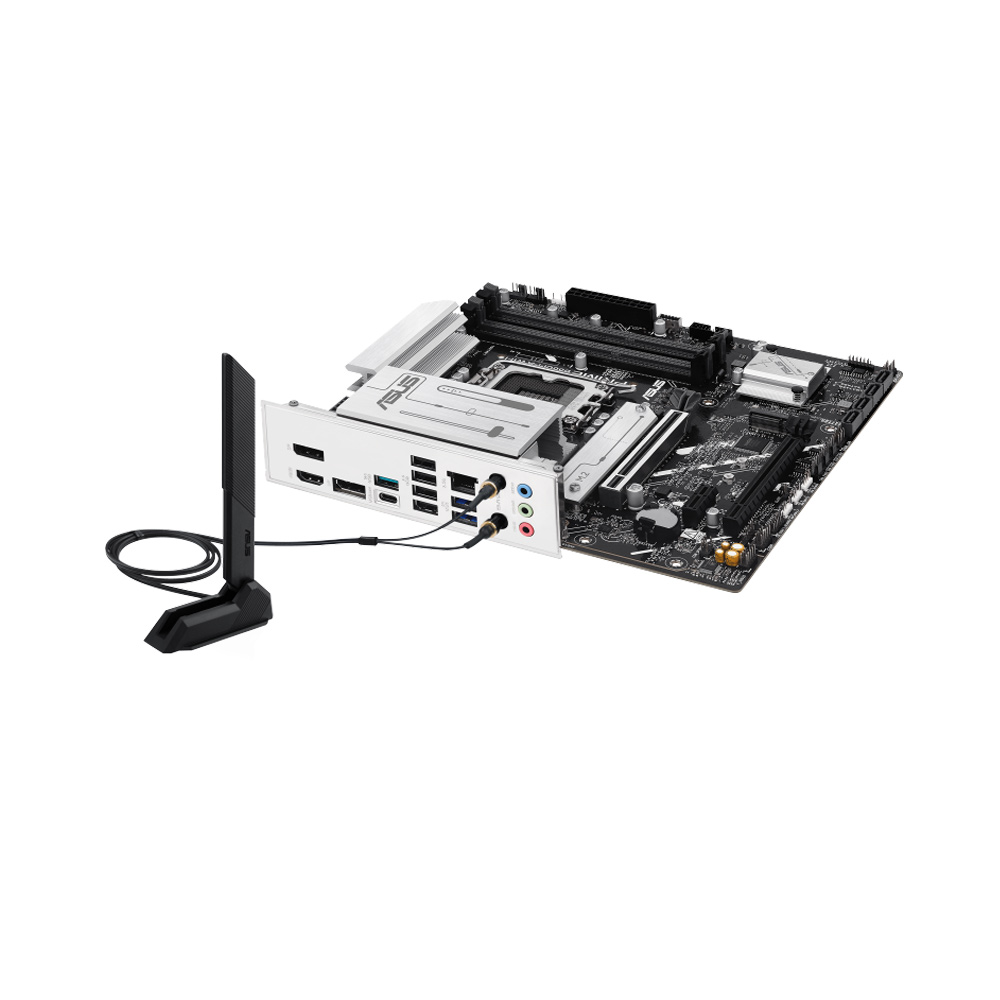

Mainboard ASUS PRIME B860M-A WIFI-CSM

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

CPU hỗ trợ

Support Intel Core Ultra Processors (Series 2) , LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset

Intel B860 Chipset

RAM hỗ trợ

4 x DIMM slots, max. 256GB, DDR5

Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMPIII)

Đồ họa

2 x DisplayPort
1 x HDMI port

Khe cắm mở rộng

Intel Core Ultra Processors(Series 2)
1 x PCIe 5.0 x16 slot

Intel B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)

Ổ cứng hỗ trợ

Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel Core Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

Intel B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)

4 x SATA 6Gb/s ports

ETHERNET

1 x Realtek 2.5Gb Ethernet
TUF LANGuard

USB

Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A )
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 5 ports)
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports

Cổng kết nối (Internal)

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers

Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors

Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 10Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additionalUSB 2.0 ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt (USB4) header

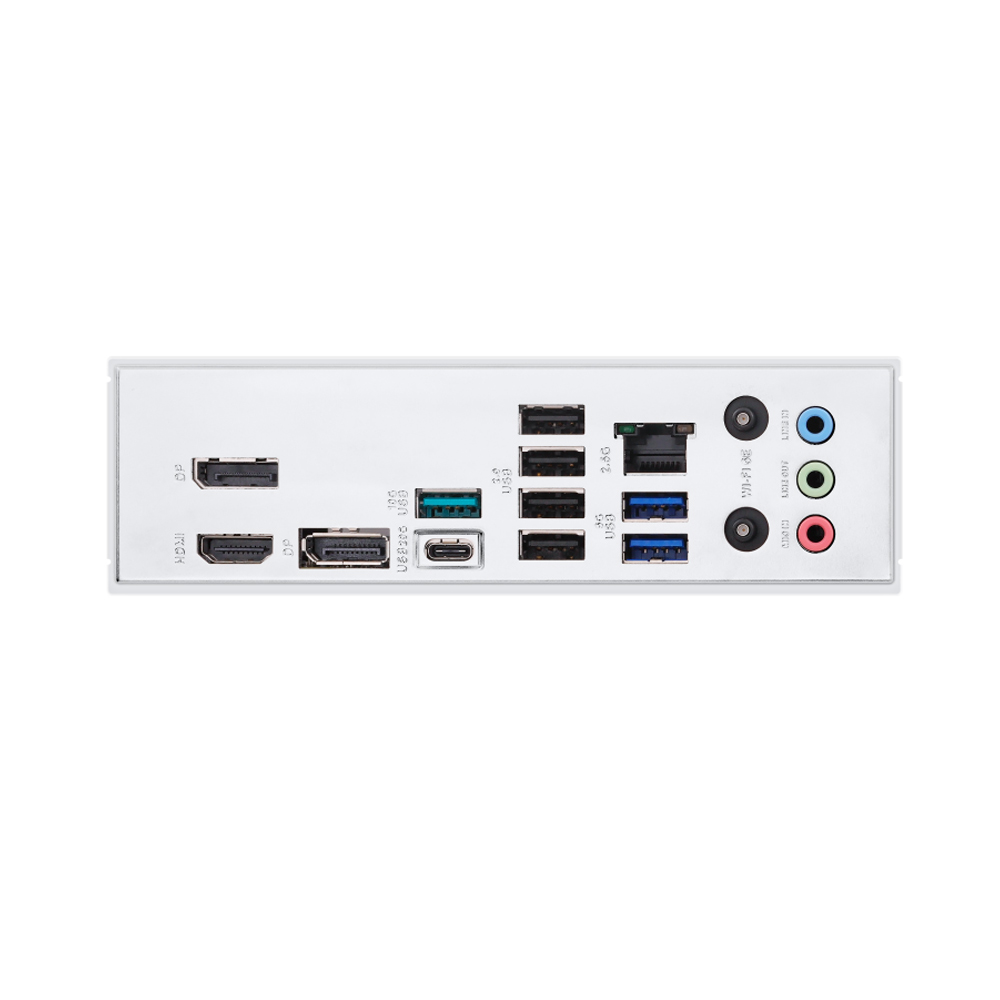

Cổng kết nối (Back Panel)

1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A )
2 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks

Âm thanh

Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

LAN / Wireless

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band

Bluetooth v5.3

Kích cỡ

mATX Form Factor
9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
