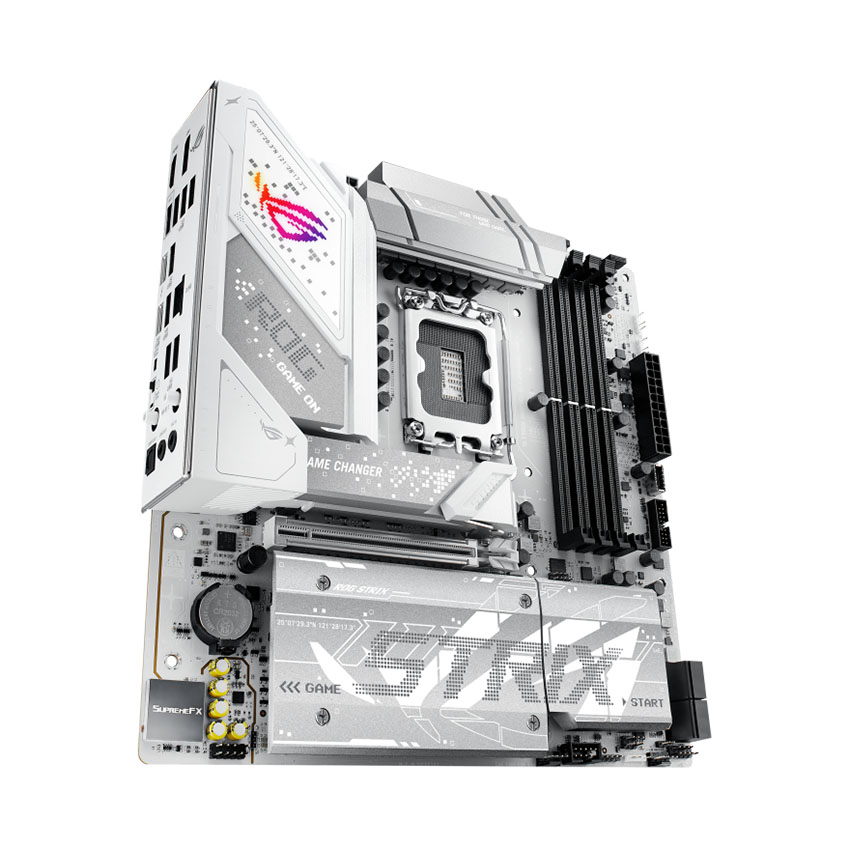

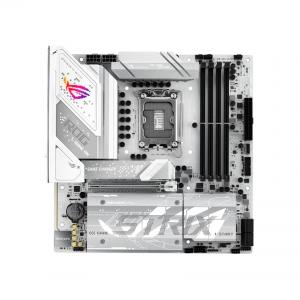

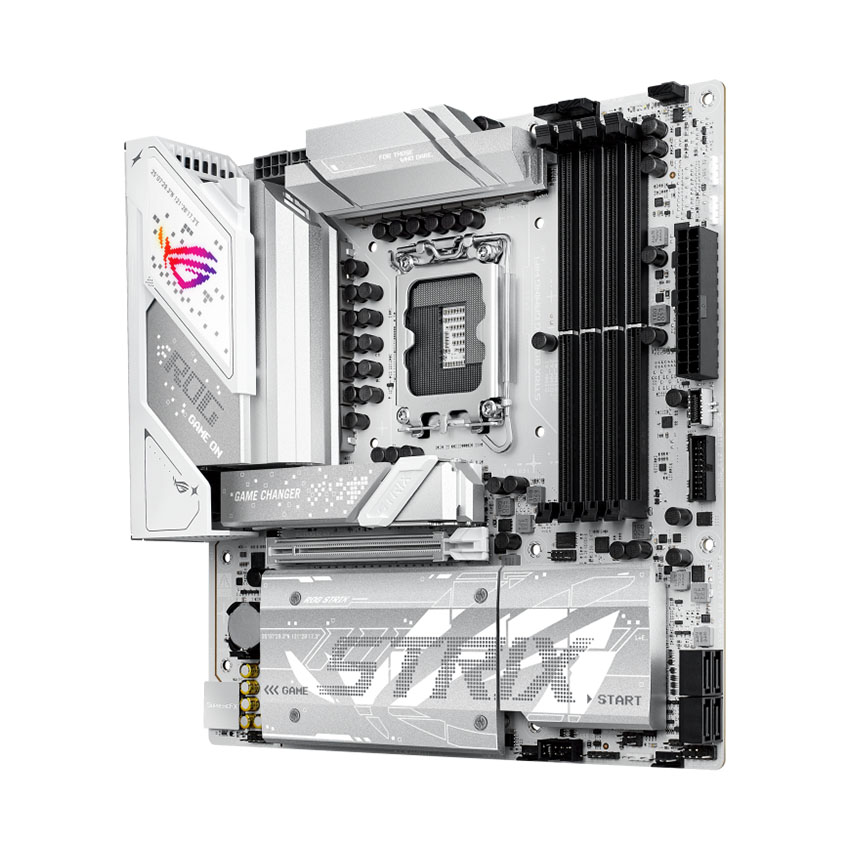

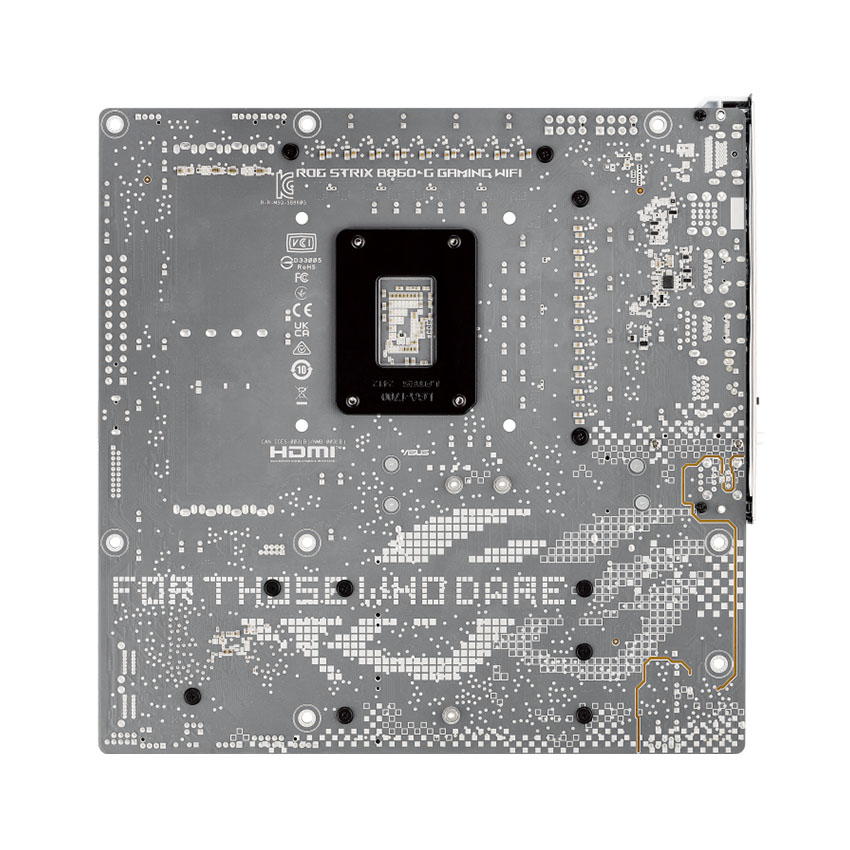

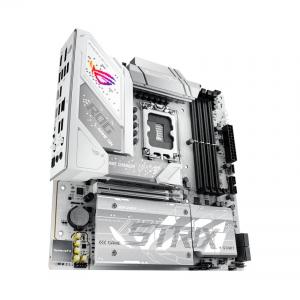

Mainboard ASUS ROG STRIX B860-G GAMING WIFI

Mainboard Asus ROG Strix B860-G Gaming WiFi

Socket LGA1851: Hỗ trợ cho Bộ xử lý Intel ® Core™ Ultra

Bộ chip Intel ® B860 Express

4 x DIMM slots, max. 256GB, DDR5
Supports up to 9066+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)

1 x DisplayPort
1 x HDMI™ port
1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs

Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot

Total supports 4 x M.2 slots and 4 x SATA
6Gb/s ports

1 x Intel® 2.5Gb Ethernet

Wi-Fi 7
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4

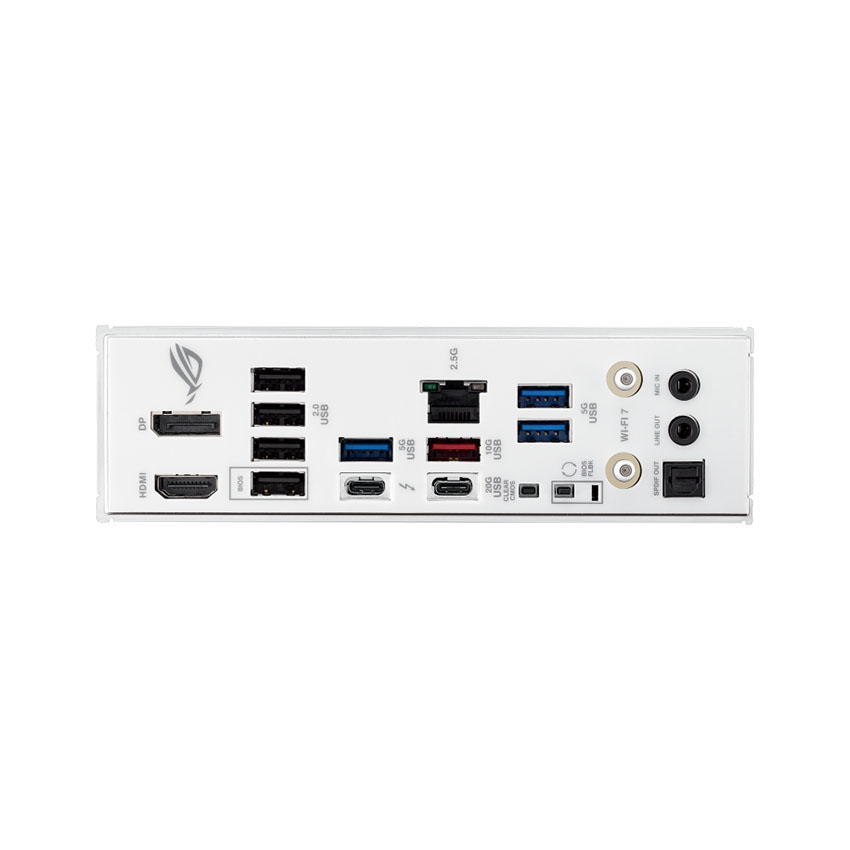

Rear USB (Total 10 ports)
1 x Thunderbolt™ 4 port (1 x USB Type-C®)
1 x USB 20Gbps ports (1 x USB Type-C®)
1 x USB 10Gbps ports (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 6 ports)
1 x USB 10Gbps connector (supports USB
Type-C®)
1 x USB 5Gbps header supports 2 additional
USB 5Gbps ports
2 x USB 2.0 header supports 3 additional
USB 2.0 ports

1 x Thunderbolt™ 4 USB Type-C® port(s)
1 x USB 20Gbps port(s) (1 x USB Type-C® with DP Alt mode)
1 x USB 10Gbps port(s) (1 x Type-A)
3 x USB 5Gbps port(s) (3 x Type-A)
4 x USB 2.0 port(s) (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Windows® 11 (22H2 & later)

micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
