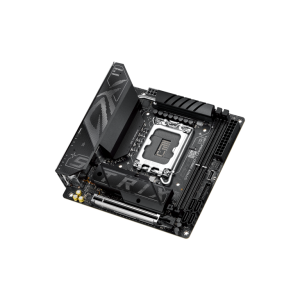

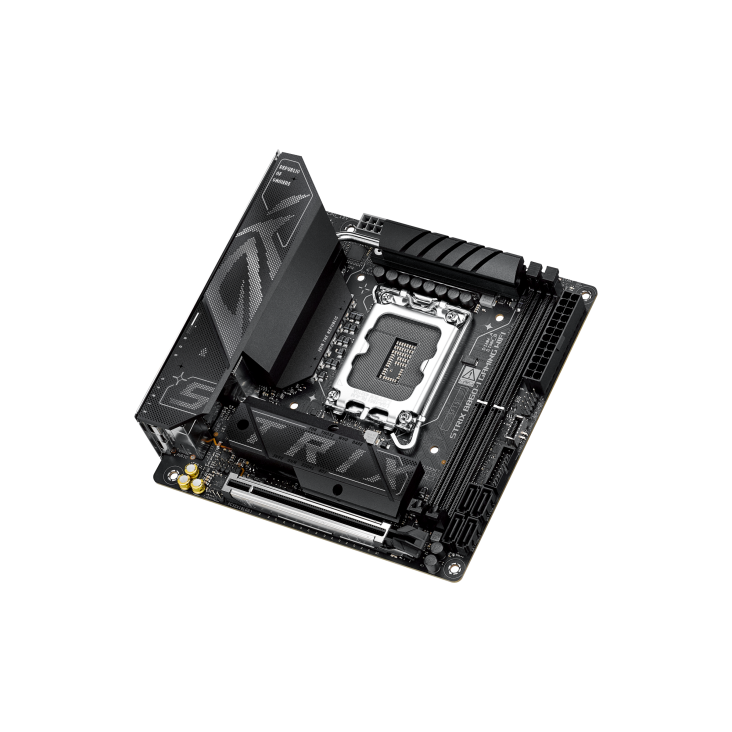

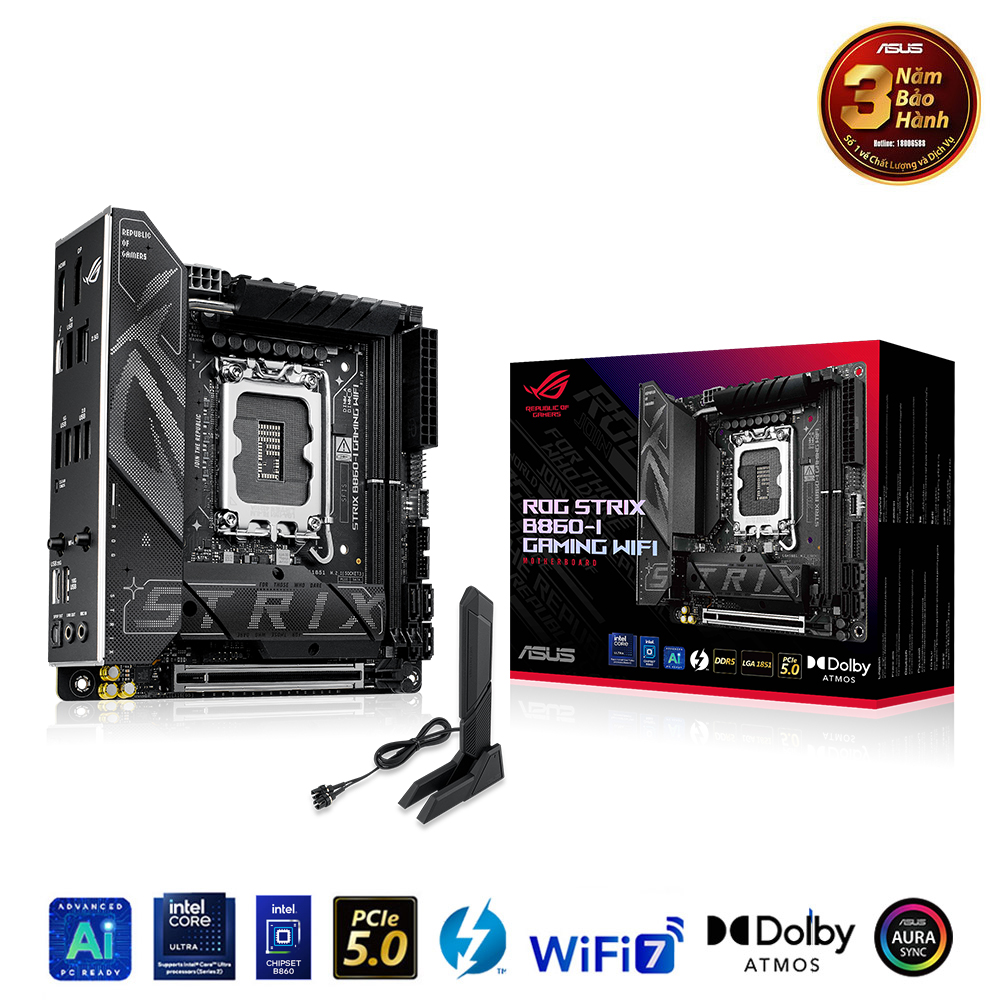

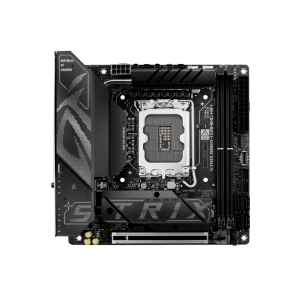

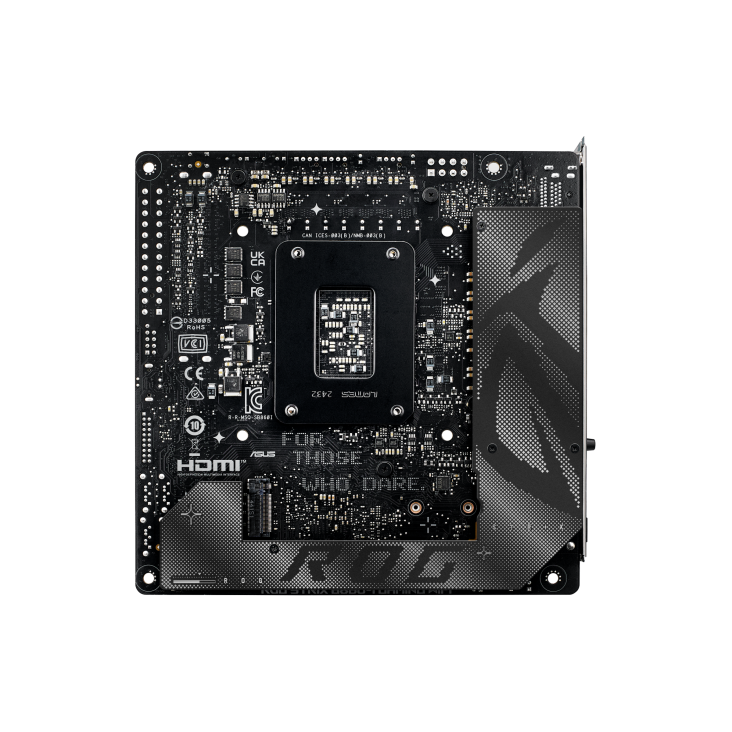

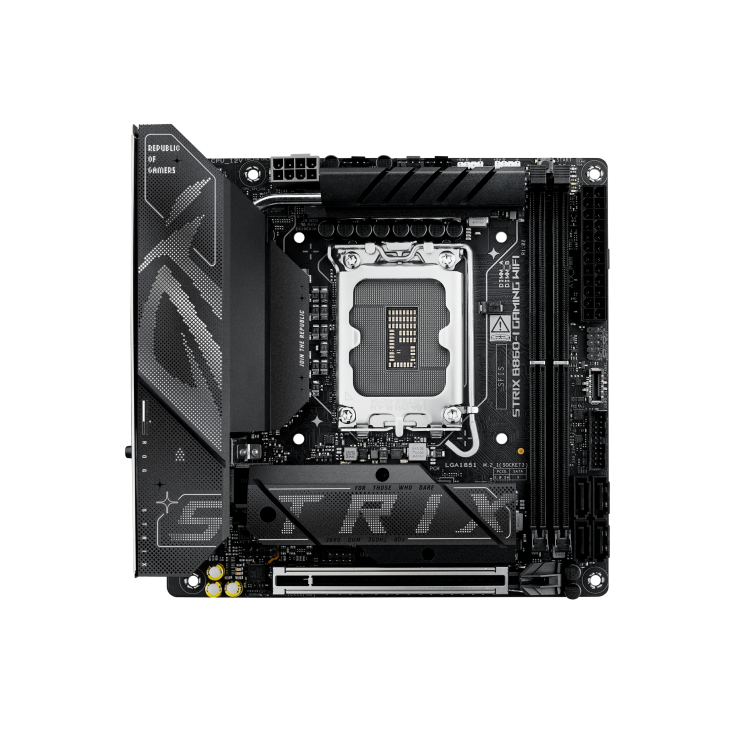

Mainboard ASUS ROG STRIX B860-I GAMING WIFI

Socket LGA1851: Hỗ trợ cho Bộ xử lý Intel ® Core™ Ultra

Bộ chip Intel ® B860 Express

2 x DIMM slots, max. 128GB, DDR5
Supports up to 9066+MT/s (OC), Non-ECC

1 x DisplayPort
1 x HDMI™ port
1 x Intel® Thunderbolt™ 4 supports

Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot

Total supports 2 x M.2 slots and 4 x SATA
6Gb/s ports

1 x Intel® 2.5Gb Ethernet

Wi-Fi 7
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4

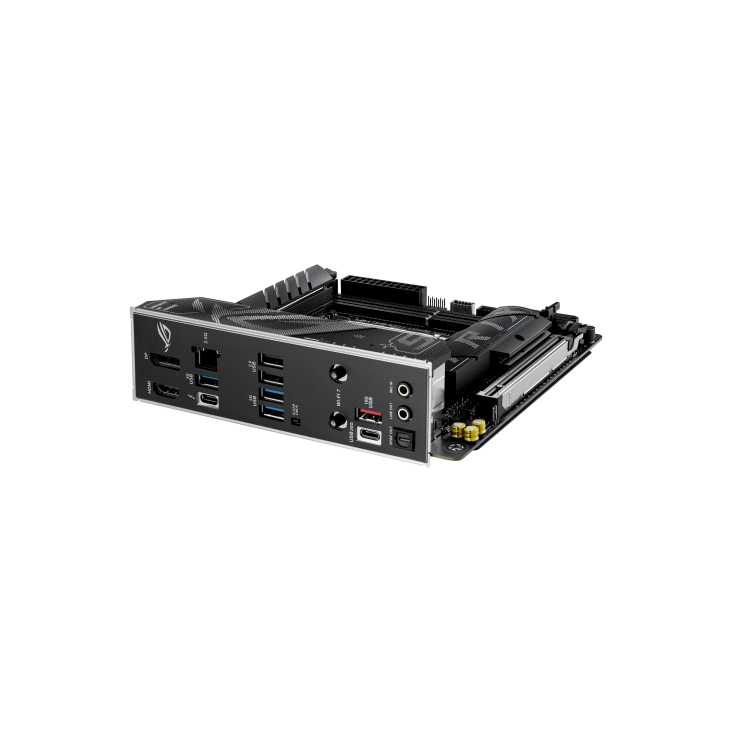

Rear USB (Total 8 ports)
1 x Thunderbolt™ 4 port (1 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C®)
1 x USB 10Gbps ports (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 5 ports)
1 x USB 10Gbps connector (supports USB
Type-C®)
1 x USB 5Gbps header supports 2 additional
USB 5Gbps ports
1 x USB 2.0 header supports 2 additional
USB 2.0 ports

1 x Thunderbolt™ 4 port (1 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C®)
1 x USB 10Gbps ports (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x Clear CMOS button

Windows® 11 (22H2 & later)

Mini-ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
