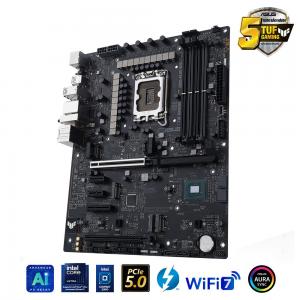

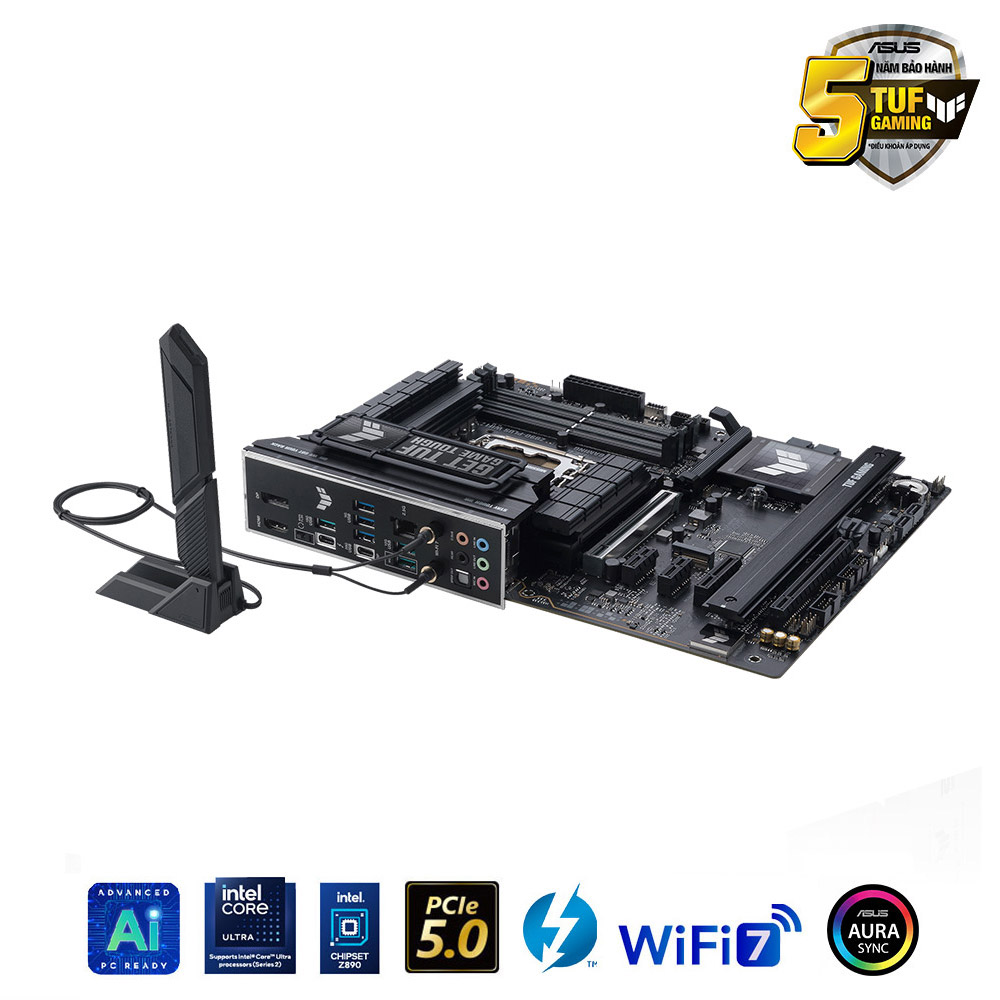

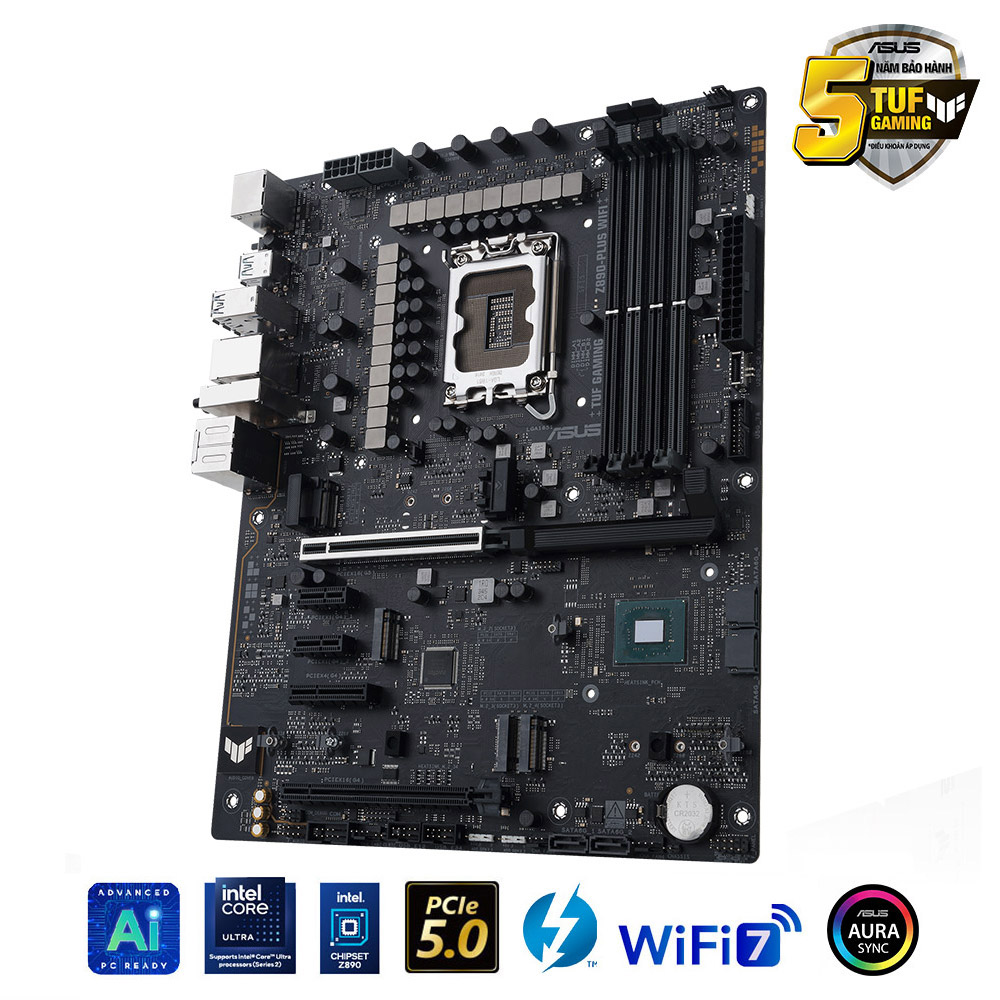

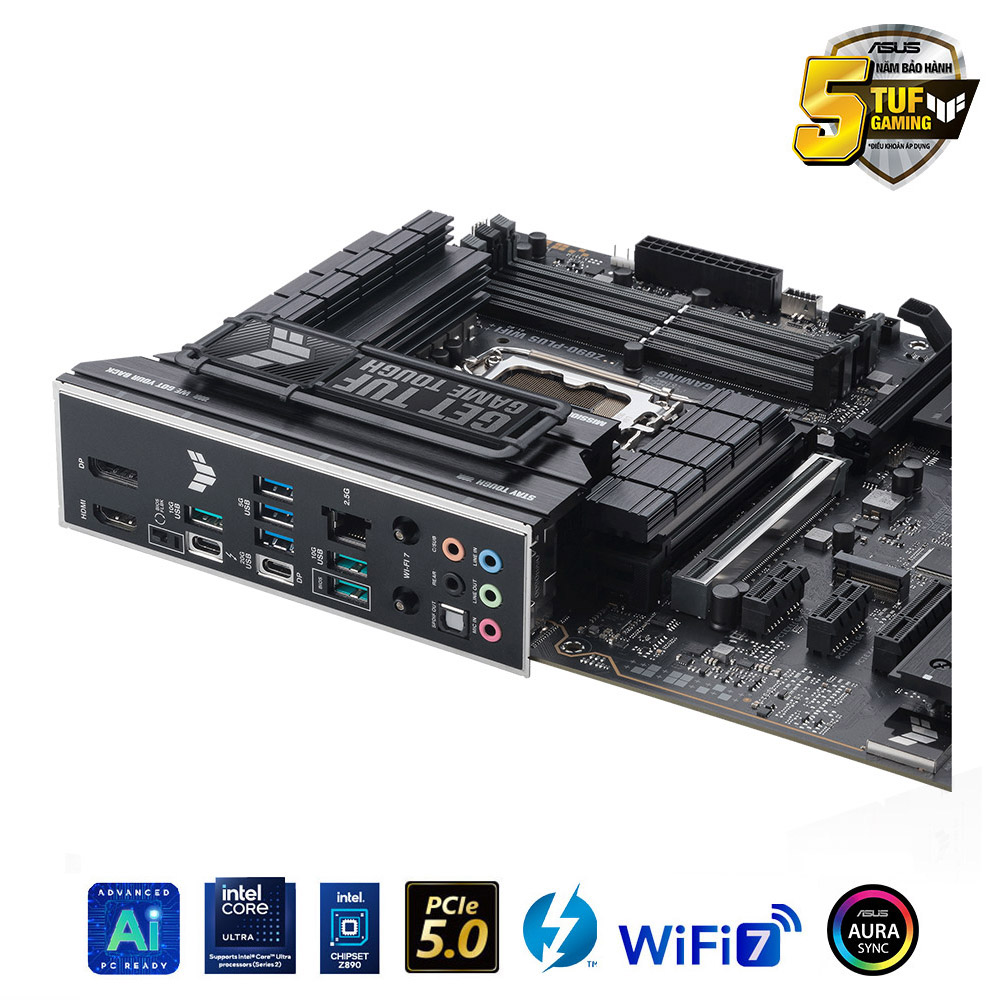

Mainboard ASUS TUF GAMING Z890-PLUS WIFI DDR5

Support Intel Core Ultra Processors (Series 2) , LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Intel Z890 Chipset

4 x DIMM slots, max. 192GB, DDR5
Support up to 9066+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)

Intel Core Ultra Processors(Series 2)
1 x PCIe 5.0 x16 slot

Intel Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 4.0 x1 slots

Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Ultra Processors(Series 2)
M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header

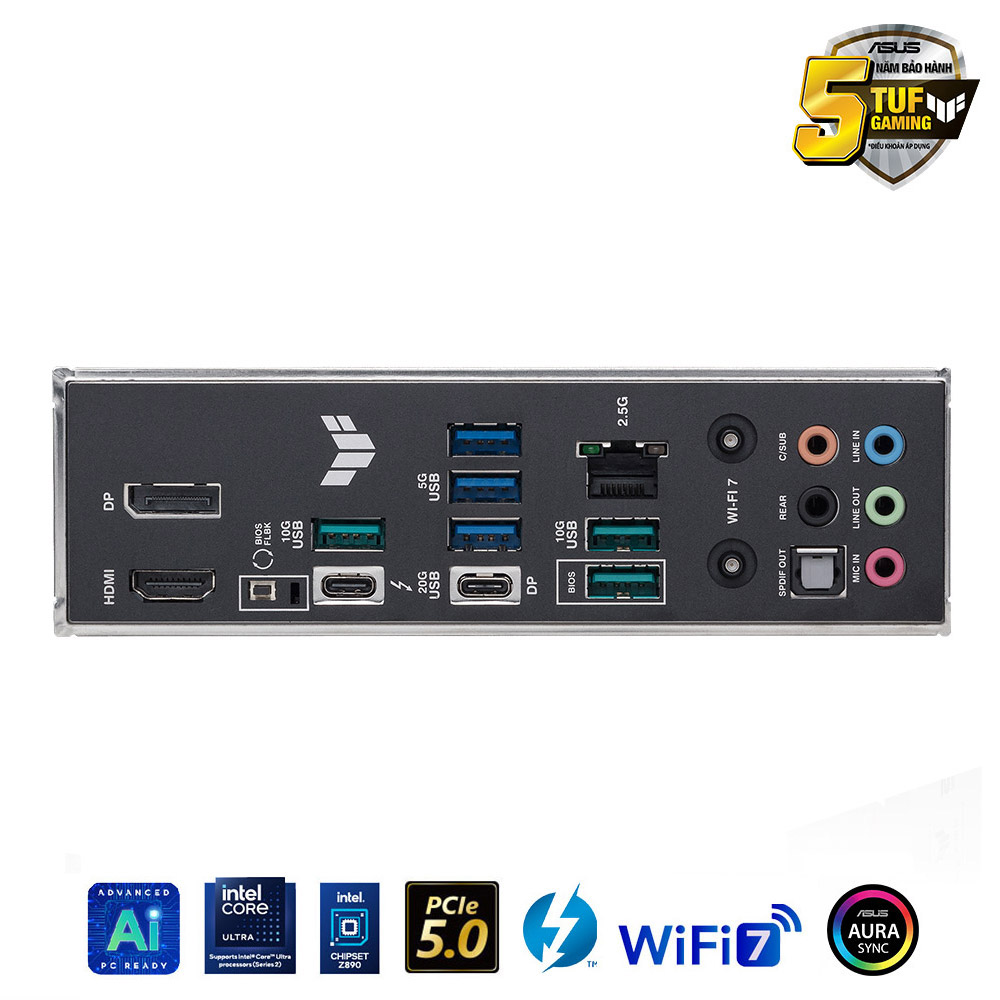

1 x Thunderbolt 4 USB Type-C port
1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)
3 x USB 10Gbps ports (3 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button

LAN

1 x Intel 2.5Gb Ethernet

TUF LANGuard

Wireless

Intel Wi-Fi 7

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band

Support Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth v5.4

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
